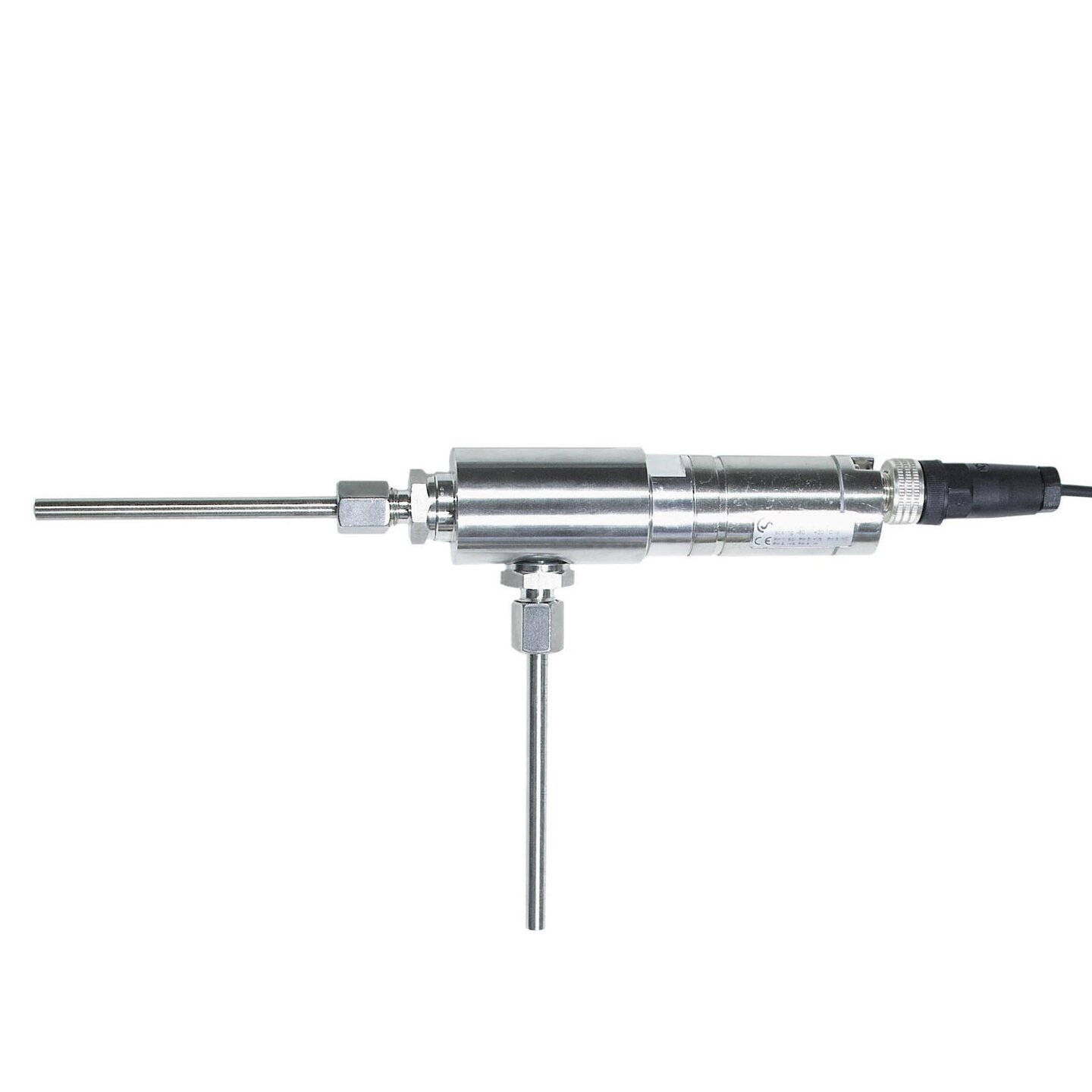

Stainless steel Bypass measuring chamber up to 500 bar

During Dew point measurement with the Bypass measuring chamber, no process air or process gas is discharged into the environment. The Gases or process air to be measured flows around the sensor inside the measuring chamber. This measuring chamber is used for toxic or expensive gases, for example. The measuring chamber can be used from -1 to 500 bar. Process connection G ¼" internal thread for connection to the process air. G ½" thread for connecting the Dew point sensor.

to the inquiry
The product has been added to inquiry.
to the inquiry

Details

in Compressed air / gases up to 500 bar (stainless steel: 1.4305)

Order no. 0699 3290
