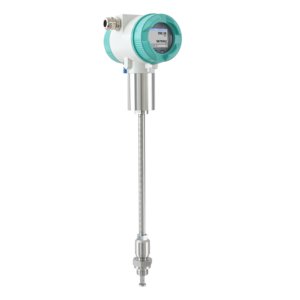

VD 550 - Robust Flow sensor for Wet compressed air / gases

  • Unrivalled sensitivity in the lower Measuring range:
    measures from as little as 2 m/s and thus covers the entire operating range
    of speed-controlled Compressors
  • Particularly suitable for extremely high Flow rates
  • Flow, Total consumption, Temperature and Pressure
  • Measuring at high temperatures, max. temperature 180 °C
  • Can be used in pipes from DN 20 to DN 600
  • Installation via 1/2″ Ball valve under Pressure
  • Robust impact-resistant die-cast aluminium housing for outdoor use
    IP 67
na požadavek
Produkt byl přidán do žádosti.
na požadavek

Podrobnosti

Typical applications:

  • Measuring the Capacity of compressors
  • Compressed air audits
  • Efficiency measurement of Compressedair systems
